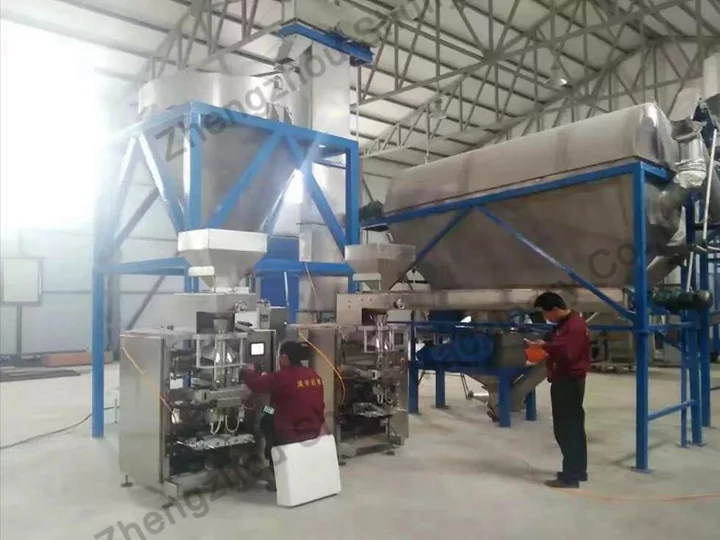

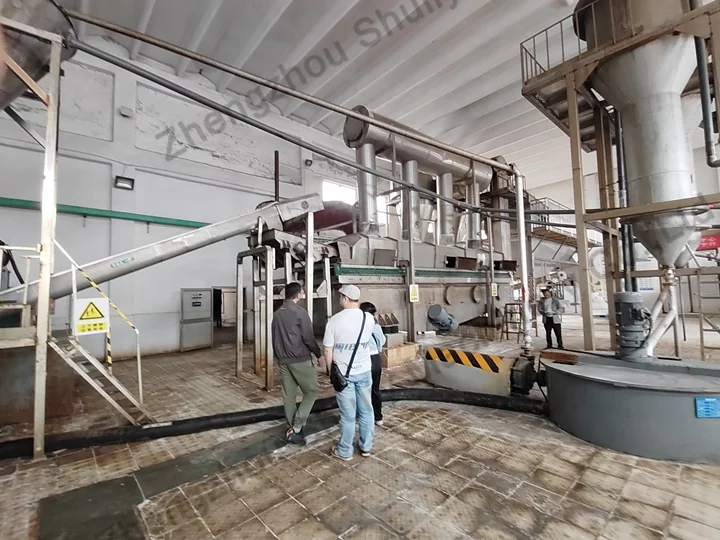

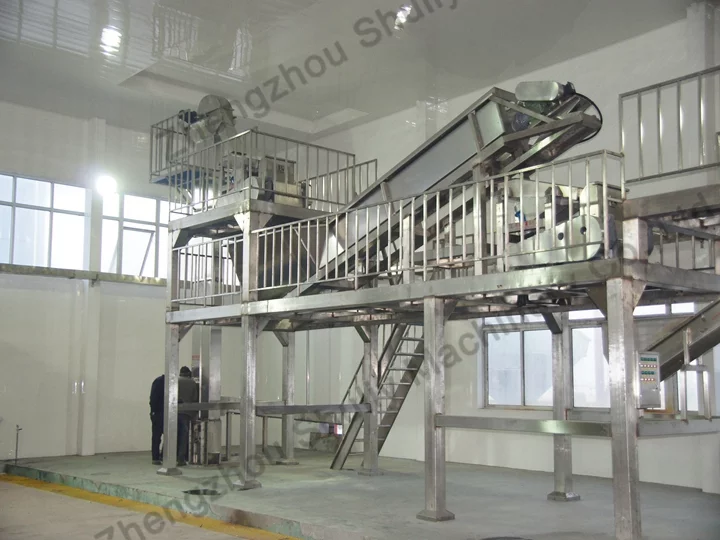

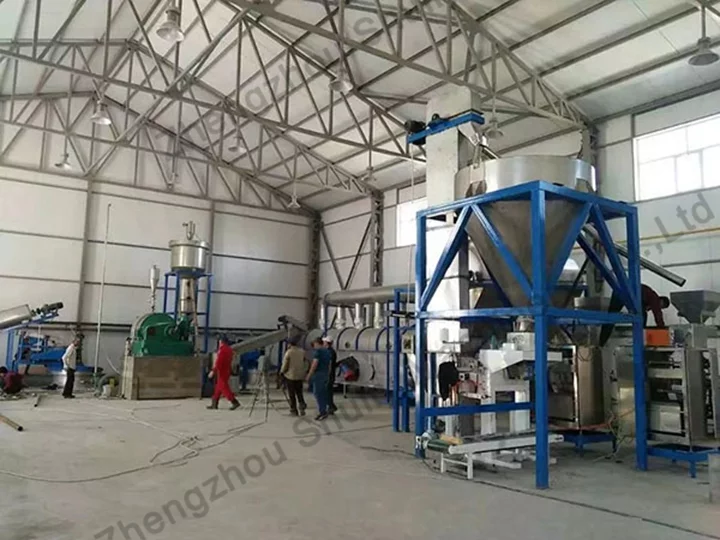

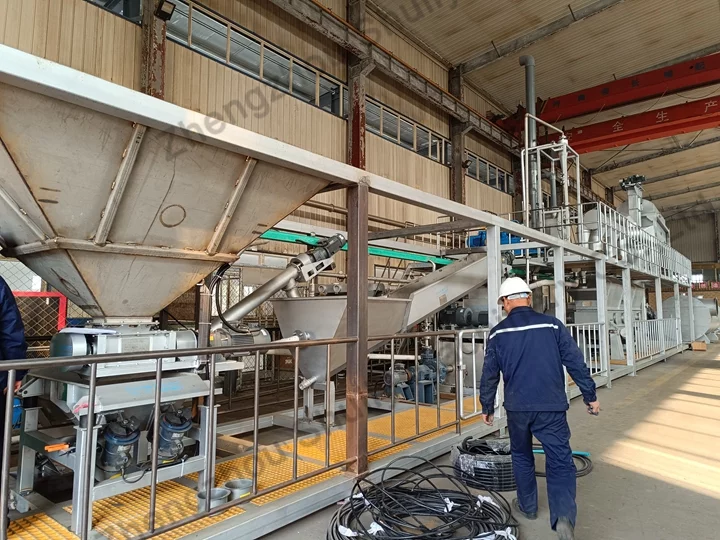

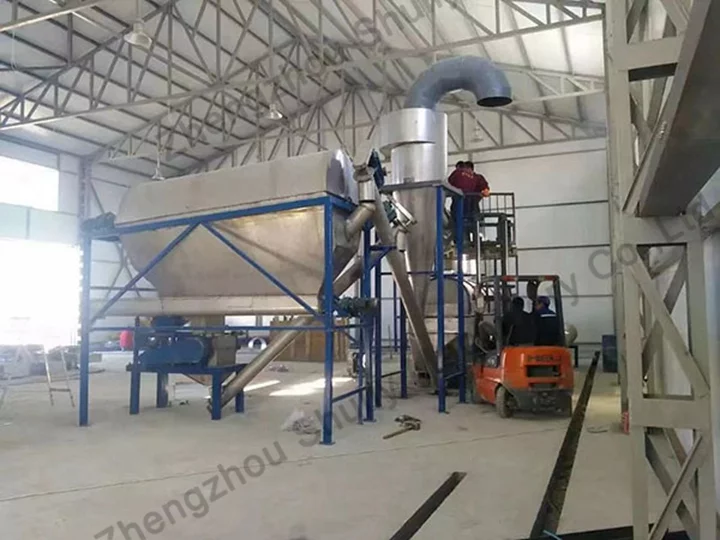

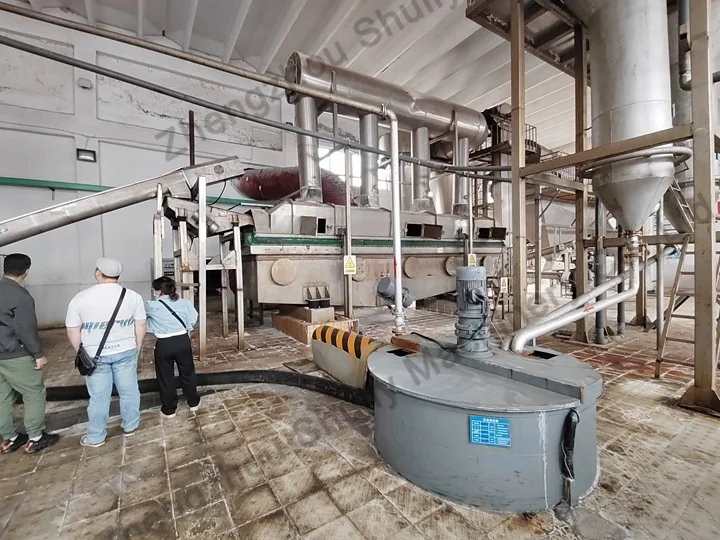

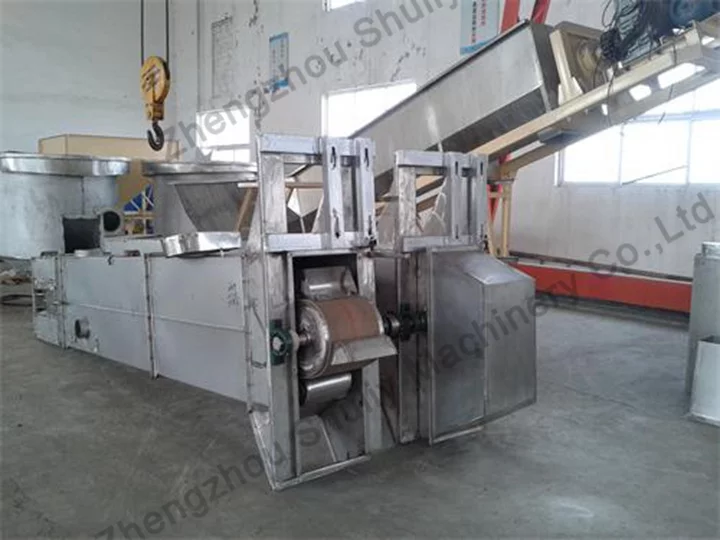

Salt Washing Machine Processing Line is a complete salt deep-processing system to convert raw salt into industrial salt, refined salt, and other value-added salt products.
The production line integrates crushing, washing, screening, dewatering, drying, iodization, and packaging into a fully automated process, ensuring continuous, efficient, and intelligent operation.
With customizable capacities ranging from 1 to 25 tons per hour, it is suitable for sea salt plants, lake salt processing facilities, salt refineries, industrial salt manufacturers, and large-scale salt production projects.
Salt Washing Machine Processing Line Functions and Applications
- Raw Material Handling: Crushing, conveying, and storing block or granular raw salt.
- Washing and Purification: Removing soil, impurities, and soluble harmful substances from salt through spiral salt washing machines and mixing salt washing machines.
- Classification and Screening: Classifying salt by particle size using screening machines to produce products of different specifications.
- Dewatering and Drying: Reducing salt moisture to standard levels through centrifugal dewatering and fluidized bed drying.
- Iodization Treatment: Adding iodine according to national standards to produce qualified iodized edible salt.
- Finished Product Packaging: Achieving automated packaging through ton bagging machines.
Scope of Application
- Industrial Salt Refining: Producing industrial-grade refined salt for chemical, metallurgical, dyeing, leather, and other industries.
- Salt Companies: Providing complete salt processing solutions for salt enterprises.
- Salt Field Construction: Offering one-stop services from planning and design to equipment installation for new salt fields.
- Overseas Projects: Supporting export to Ethiopia, Southeast Asia, and other regions.
Capacity Range
- Standard Capacity: 1 ton/hour – 25 ton/hour.
- Custom Capacity: Customized production lines available according to customer requirements.
How does the Salt Washing Processing Line work?
The Salt Washing Processing Line adopts an automated workflow to transform raw salt into high-purity finished salt through crushing, washing, dewatering, drying, and packaging. The main process includes:
- Raw Salt Feeding – Raw salt is stored in a large-capacity silo and fed evenly into the production line through a vibrating feeder.
- Crushing – Large salt blocks are crushed into uniform particles, ensuring efficient washing and stable downstream processing.
- Salt Washing – A combination of spiral washing and mixing washing removes mud, sand, and other impurities through a multi-stage cleaning process.
- Screening – A multi-layer vibrating screen separates salt into different particle sizes while automatically removing impurities and oversized materials.
- Dewatering – A high-speed centrifuge efficiently removes excess moisture, preparing the salt for the drying process.
- Drying – A fluidized bed dryer with a hot air circulation system dries the salt evenly while reducing energy consumption.
- Iodization (Optional) – An automatic dosing system accurately adds iodine to produce qualified iodized salt according to customer requirements.
- Automatic Packaging – The finished salt is accurately weighed and packed into bags or ton bags for convenient storage and transportation.
- Intelligent Control – A PLC control system with a touchscreen monitors and manages the entire production process, ensuring stable operation and high production efficiency.
This fully automated process delivers high-purity salt, low labor costs, stable product quality, and continuous production, making it ideal for sea salt, lake salt, and industrial salt processing plants.

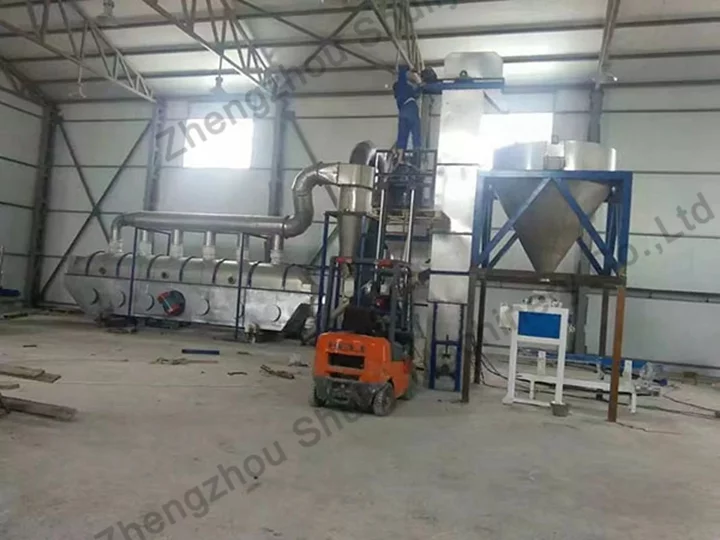

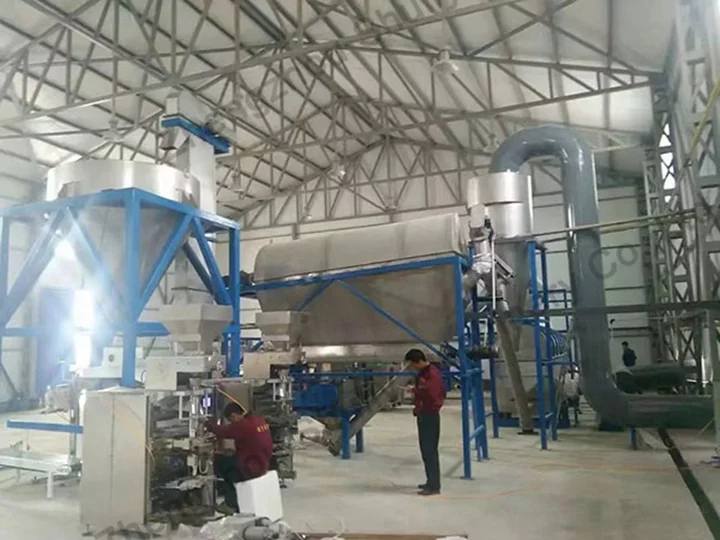

Salt Washing Machine Production Line Layout
Based on the provided layout diagrams, the production line adopts modular design with equipment connected by conveyors to ensure smooth material flow.
Typical layout includes: Raw Material Silo → Crusher → Spiral Salt Washing Machine → Mixing Salt Washing Machine → Screening Machine → Centrifuge → Fluidized Bed Dryer → Iodizer → Ton Bagging Machine.
Detailed Introduction of Core Equipment

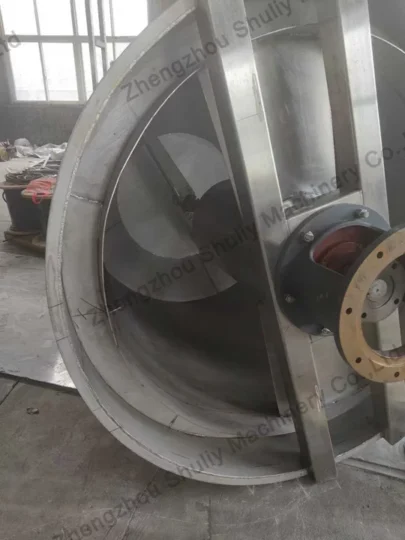

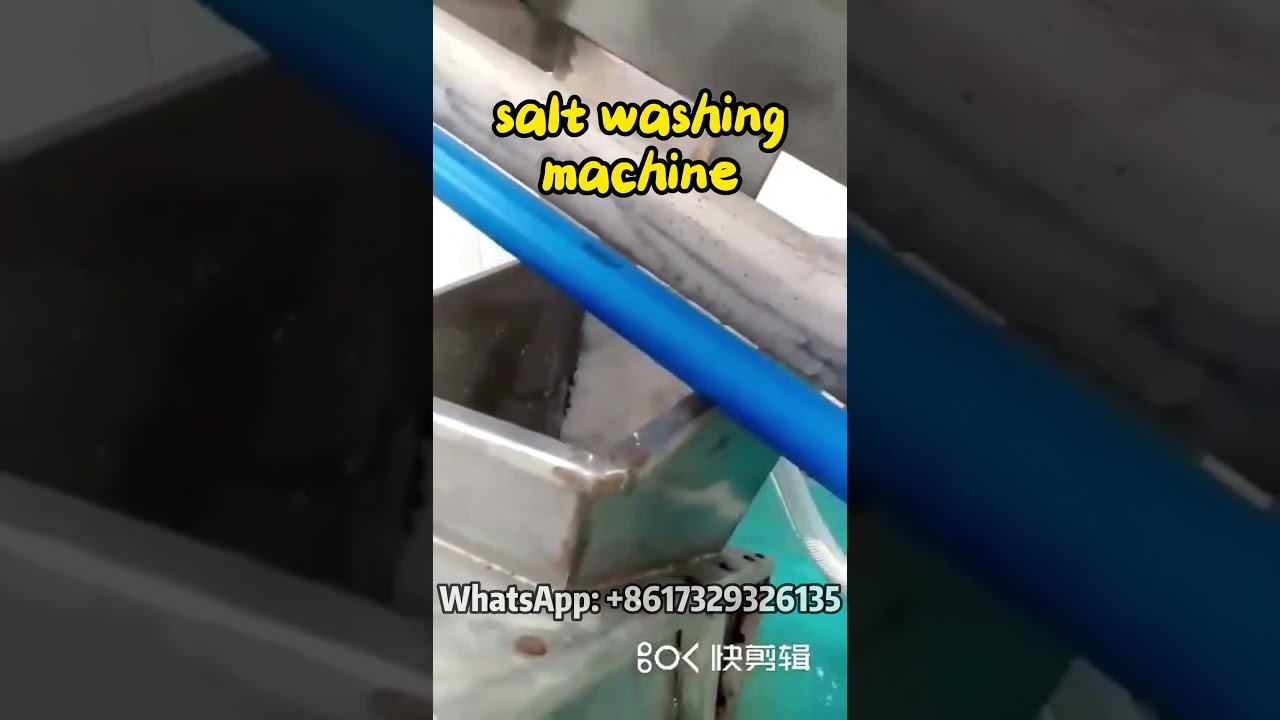

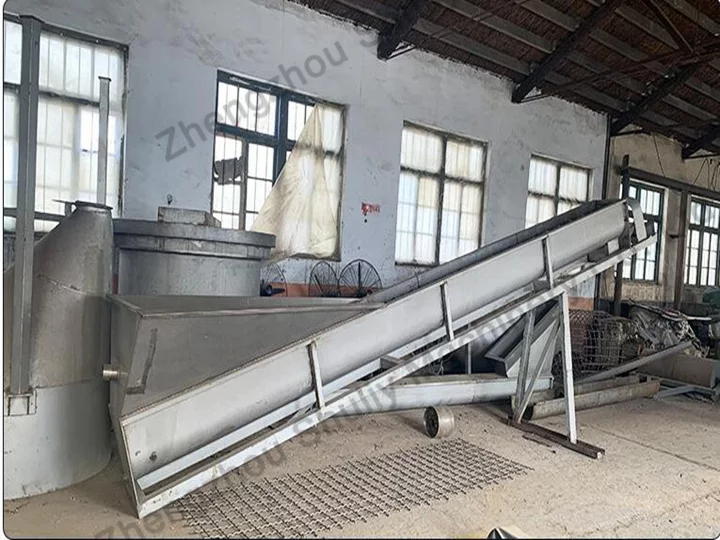

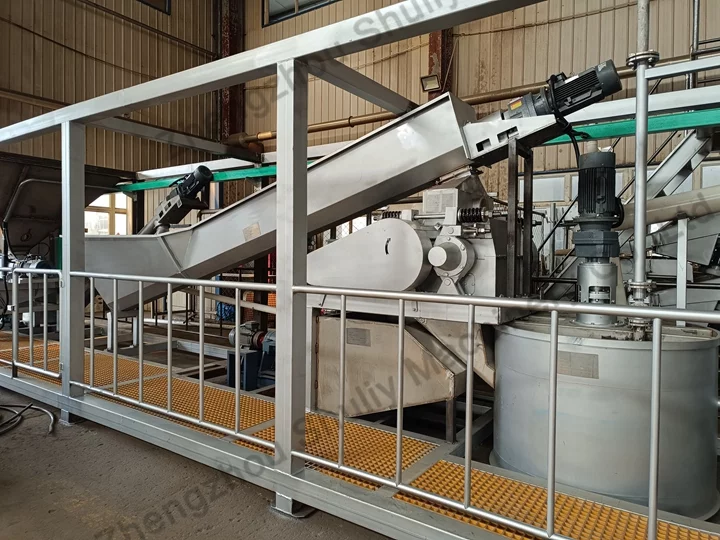

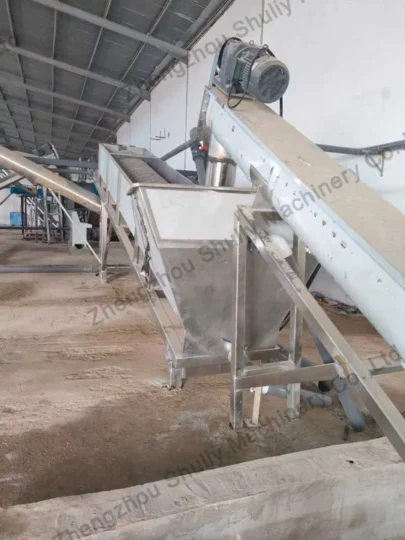

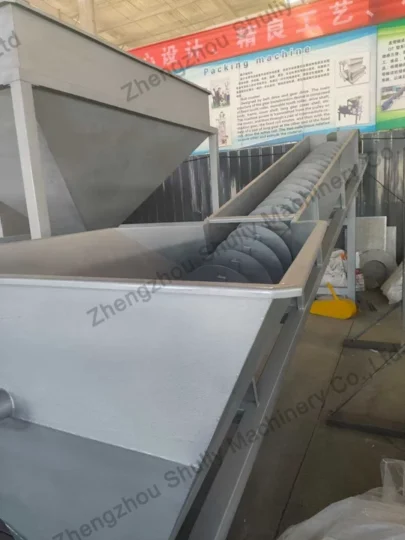

Spiral Salt Washing Machine
- Material: 304/316L Stainless Steel.
- Rotation Speed: 0-60 rpm (variable frequency adjustable).
- U-shaped trough design to prevent material overflow.
- Double spiral structure for enhanced washing and conveying effect.
- Spiral blades made of wear-resistant material for extended service life.
- Drainage port at the bottom for easy cleaning and slag discharge.
- Sealed bearing design at both ends to prevent salt leakage.
Raw salt enters the U-shaped trough from the feed inlet and is conveyed forward by the spiral blades. Washing water is injected into the trough simultaneously, allowing full mixing of salt and water. Through the agitation and conveying action of the spiral, impurities in the salt dissolve in water and are discharged through the drainage port, achieving the washing purpose.

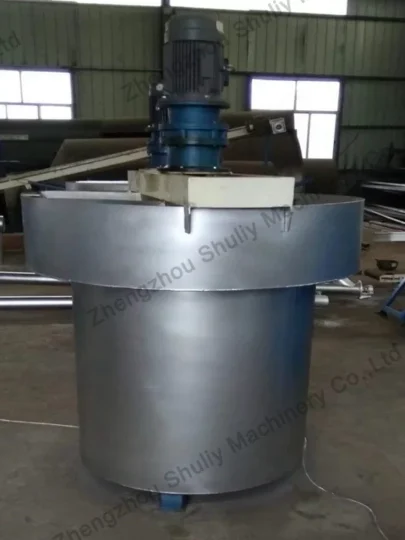

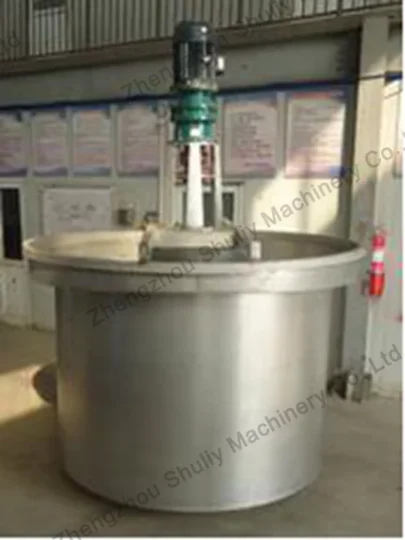

Mixing Salt Washing Machine
- Material: 304/316L Stainless Steel.
- Mixing Speed: 0-120 rpm (variable frequency adjustable).
- Cylindrical tank design with large internal space.
- Multi-layer mixing blades for thorough mixing.
- Automatic water replenishment system to maintain stable washing liquid concentration.
- Conical bottom design for easy discharging and slag removal.
- Equipped with observation window and cleaning port for convenient maintenance.
Preliminarily washed salt from the spiral salt washing machine enters the mixing salt washing machine. Under the powerful mixing of the blades, salt and washing water are fully mixed, and fine and soluble impurities are further removed. The washed salt exits through the discharge port to the next process.

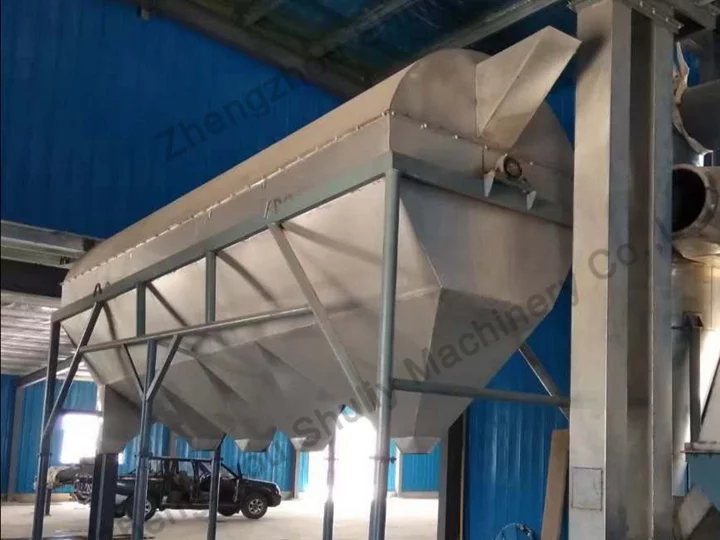

Screening Machine
- Material: 304/316L Stainless Steel.
- Screen Layers: 2-5 layers.
- Screen Mesh Size: Configurable as needed (e.g., 20 mesh, 40 mesh, 60 mesh).
- Vibration Frequency: Adjustable.
- Multi-layer screen design for multi-stage classification.
- Vibration motor drive for high screening efficiency.
- Stainless steel screen with corrosion resistance and uniform aperture.
- Equipped with dust collection device to reduce dust pollution.
- Quick screen replacement for different product requirements.
Washed salt enters the screening machine through the feed inlet. Under the vibration of the motor, the screens vibrate, and salt particles pass through different screen layers according to size, achieving classification. Salt of different particle sizes exits through respective discharge ports.

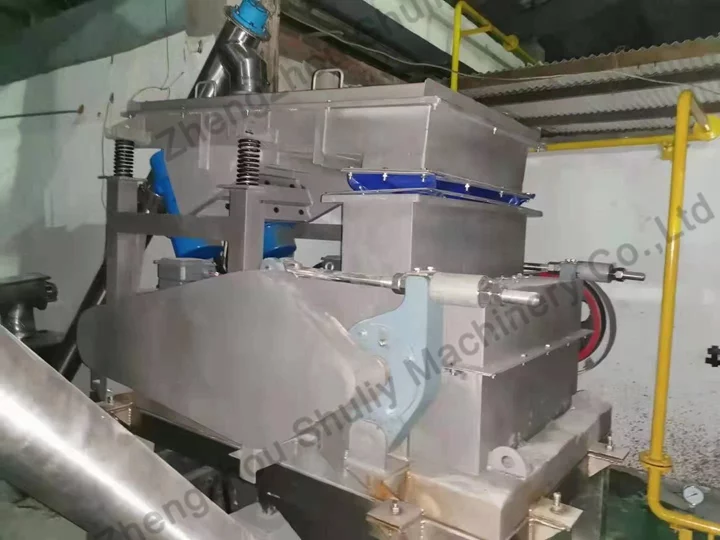

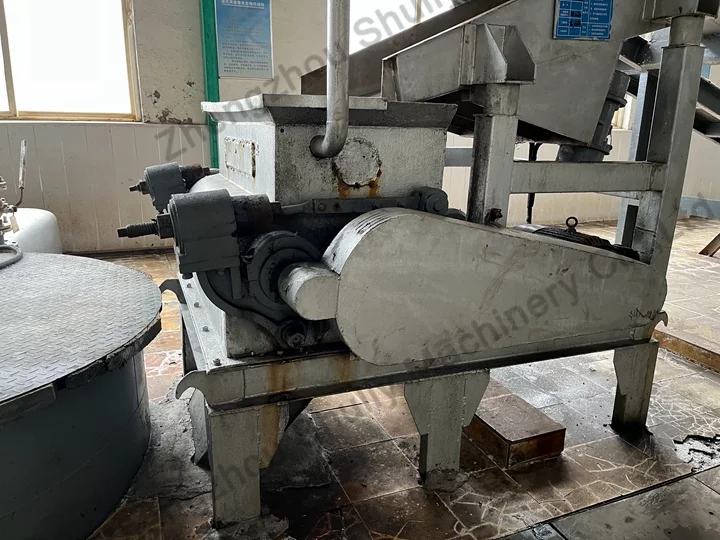

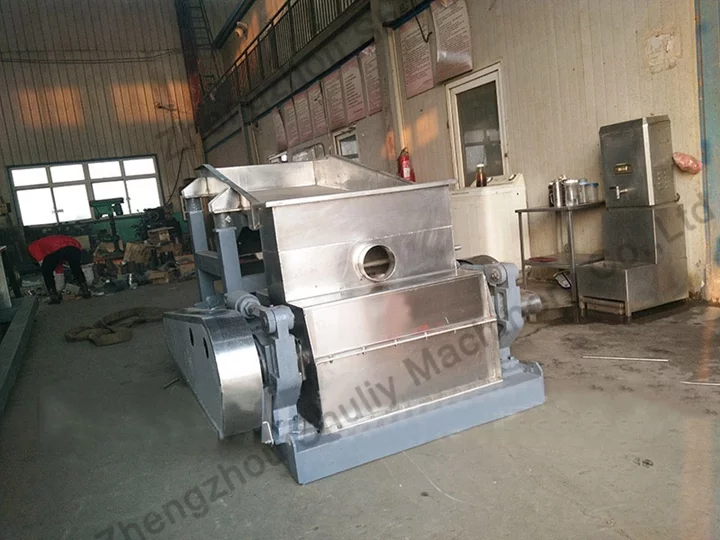

Crusher
- Material: 304/316L Stainless Steel.
- Crushing Particle Size: 0.1-5mm (adjustable).
- Rotation Speed: 3000-6000 rpm.
- High-efficiency crushing chamber for high crushing efficiency.
- Blades made of wear-resistant material for extended service life.
- Overload protection device for equipment safety.
- Easy disassembly and cleaning for food hygiene compliance.
- Equipped with noise reduction device.
Large raw salt blocks enter the crushing chamber through the feed inlet and are cut and crushed into fine particles by the high-speed rotating blades. The crushed salt exits through the discharge port to the next process.

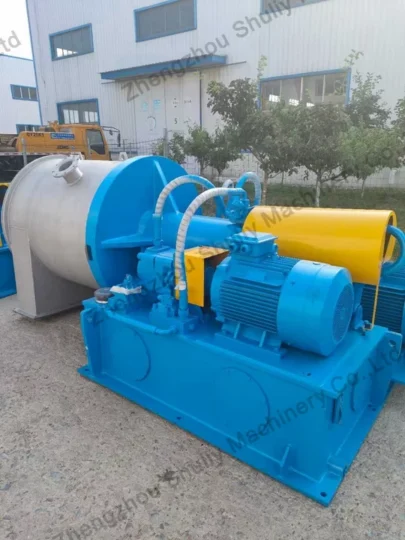

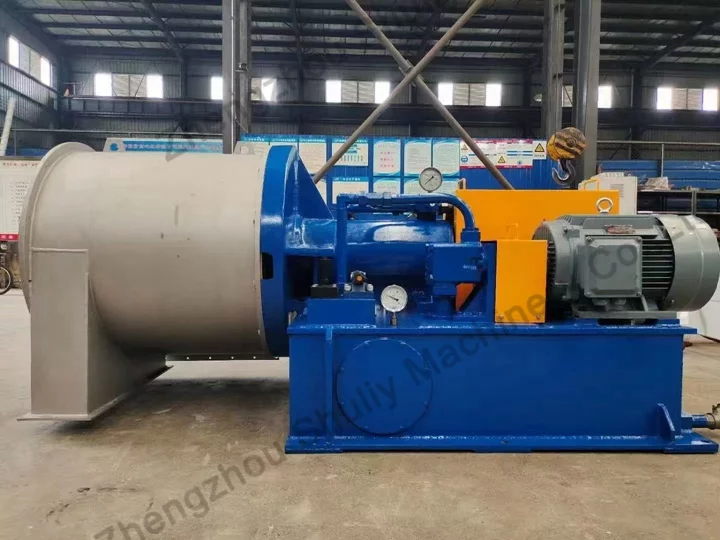

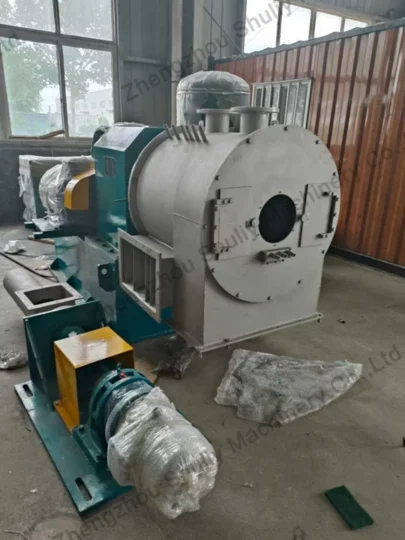

Centrifuge
- Material: 304/316L Stainless Steel.
- Rotation Speed: 0-3000 rpm (variable frequency adjustable).
- Separation Factor: Customized according to model.
- Horizontal spiral discharge structure for continuous discharge.
- Variable frequency control for adjustable speed to suit different materials.
- Full stainless steel construction for corrosion resistance and food hygiene compliance.
- High automation with minimal manual intervention.
- Stable operation with low noise.
Salt slurry enters the centrifuge and, under centrifugal force from high-speed rotation, salt particles are thrown to the drum wall while water exits through holes in the drum. Dewatered salt is discharged through the spiral conveyor.

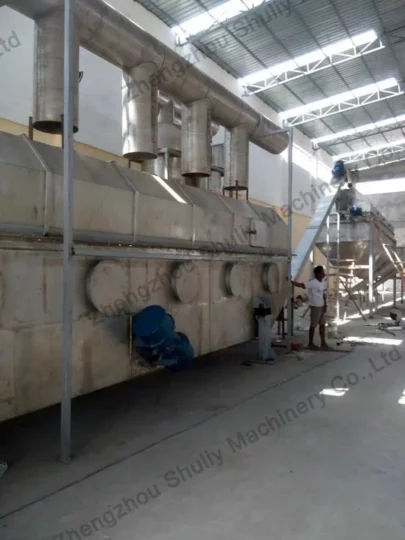

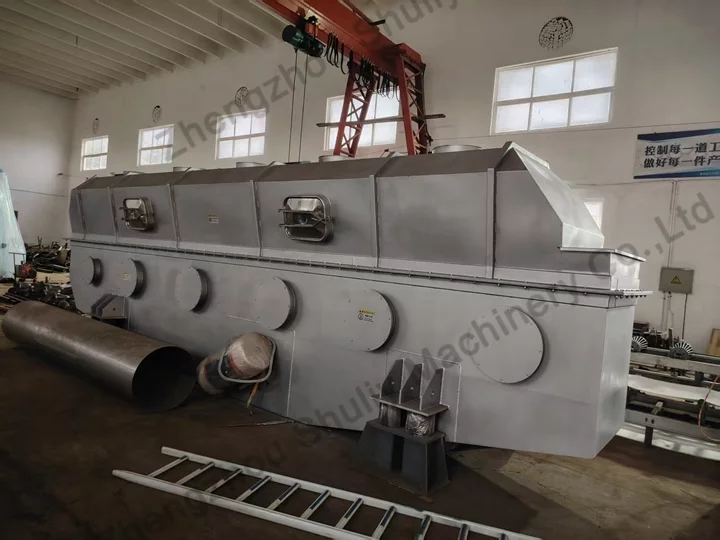

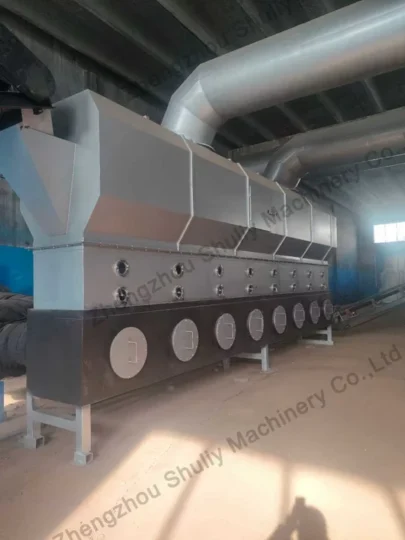

Fluidized Bed Dryer
- Material: 304/316L Stainless Steel.
- Drying Temperature: 60-120°C (adjustable).
- Hot Air Volume: Customized according to model.
- Fluidized bed structure for uniform drying.
- Low-temperature drying technology to preserve salt quality.
- Hot air circulation system for energy saving.
- Automatic temperature control to ensure drying effect.
- Large processing capacity with high drying efficiency.
Dewatered salt enters the fluidized bed dryer and is fluidized by hot air. Salt particles fully contact with hot air, moisture evaporates quickly, and dried salt exits through the discharge port.

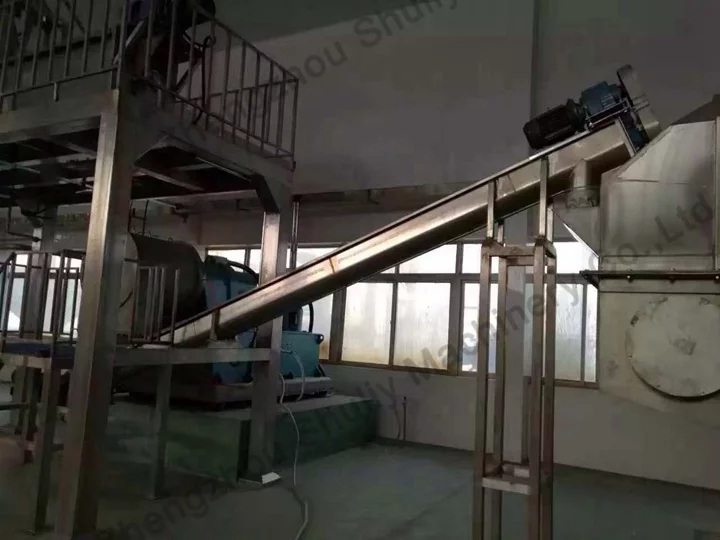

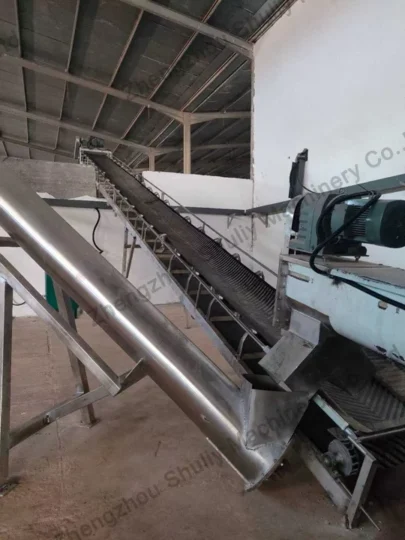

Conveyor
- Stainless steel construction for corrosion resistance.
- Variable frequency speed control for stable operation.
- Compact structure for easy installation.
- Sealed design to reduce dust pollution.

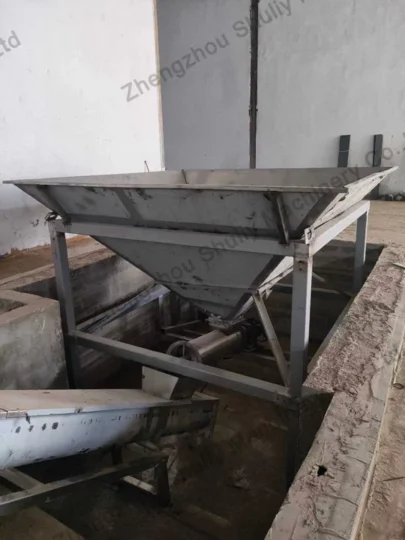

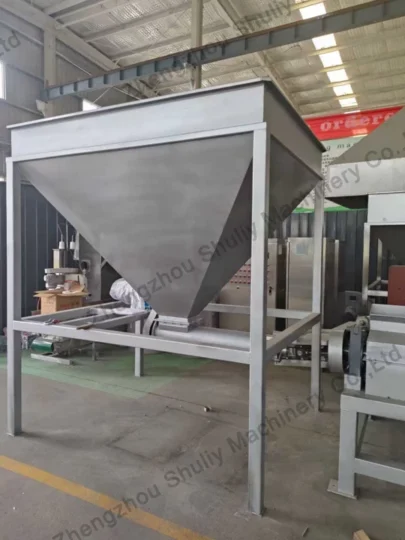

Silo
- Large-capacity storage to ensure continuous production.
- Conical bottom design for easy discharging.
- Material level monitoring system for real-time status.
- Anti-arch device to prevent material blockage.
- Equipped with dust collection device.

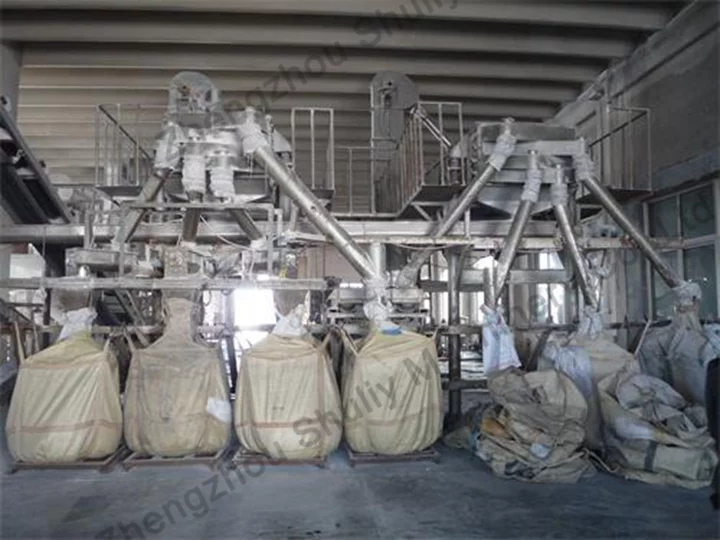

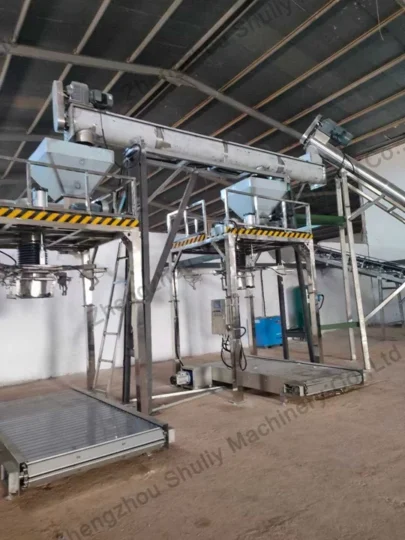

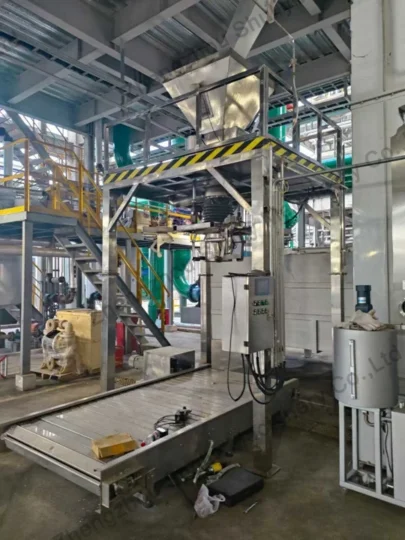

Ton Bagging Machine
- Material: 304/316L Stainless Steel.
- Packaging Weight: 500-2000kg (adjustable).
- Accuracy: ±0.5%.
- Automated packaging for improved efficiency.
- Precise weighing system for accurate packaging weight.
- Dust-proof design to minimize dust pollution.
- Adjustable packaging specifications according to requirements.
- Simple operation and easy maintenance.
Product Line Model Parameter Table
| Model | Capacity | Material | Application |
|---|---|---|---|
| SWPL-1T | 1 ton/hour | 304/316L Stainless Steel | Small salt fields, laboratories, trial production |
| SWPL-2T | 2 ton/hour | 304/316L Stainless Steel | Small to medium salt fields, township salt enterprises |
| SWPL-5T | 5 ton/hour | 304/316L Stainless Steel | Medium salt fields, regional salt companies |
| SWPL-8T | 8 ton/hour | 304/316L Stainless Steel | Medium salt fields, medium salt enterprises |
| SWPL-10T | 10 ton/hour | 304/316L Stainless Steel | Large salt fields, provincial salt companies |
| SWPL-15T | 15 ton/hour | 304/316L Stainless Steel | Large salt fields, large salt enterprises, overseas projects |
| SWPL-20T | 20 ton/hour | 304/316L Stainless Steel | Extra-large salt enterprises, group companies |
| SWPL-25T | 25 ton/hour | 304/316L Stainless Steel | Extra-large salt enterprises, international projects |
The above parameters are standard configurations and can be customized according to customer requirements. Specific power and dimensions depend on the actual solution.
Salt Washing Machine Processing Line Features and Advantages
- Premium Stainless Steel Construction – Made of 304/316L stainless steel for excellent corrosion resistance, food-grade hygiene, and long service life.
- Customizable Production Capacity – Available in capacities from 1 to 25 tons per hour, with tailored solutions for different salt processing requirements.
- Intelligent Automatic Control – Equipped with a PLC control system, touchscreen interface, real-time monitoring, fault diagnosis, and optional remote management.
- Energy-Saving Design – Features a fluidized bed dryer, hot air circulation, variable-frequency drives, and an optimized process to reduce water and energy consumption.
- High-Quality Salt Output – Multi-stage washing, precise screening, efficient dewatering, and uniform drying ensure high-purity salt that meets edible and industrial standards.
- Reliable After-Sales Support – Comprehensive services including installation, operator training, 24/7 technical assistance, and genuine spare parts supply for long-term operation.
Contact Us
The Salt Washing Machine Processing Line is an ideal solution for producing high-purity edible, industrial, and sea salt with stable quality and high efficiency. From raw salt feeding and impurity removal to washing, dewatering, drying, screening, and automatic packaging, the entire process is designed to maximize productivity while minimizing water consumption and operating costs.
With capacities ranging from 1 to 25 tons per hour, the line can be customized to meet the requirements of different salt producers and processing plants. For customers seeking a complete salt production solution, we also offer salt harvesting machines that can work seamlessly with the washing line, providing an integrated system from salt collection to final packaging. Contact us today for a customized salt processing solution and a competitive factory quotation.
